Android Performance Patterns: Understanding Overdraw

Word count: 606Reading time: 3 min

 2015/04/19

Series Catalog:

One of the most problematic performance problems on Android is the easiest to create; thankfully, it’s also easy to fix.

OVERDRAW is a term used to describe how many times a pixel has been re-drawn in a single frame of rendering. It’s a troublesome issue, because in most cases, pixels that are overdrawn do not end up contributing to the final rendered image. As such, it amounts to wasted work for your GPU and CPU.

Fixing overdraw has everything to do with using the available on-device tools, like Show GPU Overdraw, and then adjusting your view hierarchy in order to reduce areas where it may be occurring.

What is Overdraw?

At the beginning of the video, the author uses a house painter as an analogy: painting a wall is hard work, and if you have to repaint it because you don’t like the color, the first layer was a waste of effort. Similarly, in your application, any work that doesn’t end up on the final screen is wasted. When you try to balance high performance with perfect design, you often run into a common performance issue: Overdraw!

Overdraw represents a situation where a single pixel on the screen is painted more than once within a single frame. As shown in the image below, imagine a stack of overlapping cards. The active card is on top, while the inactive ones are buried beneath. This means the effort spent rendering those buried cards is wasted because they are invisible to the user. We are wasting GPU time rendering things that don’t contribute to the final image.

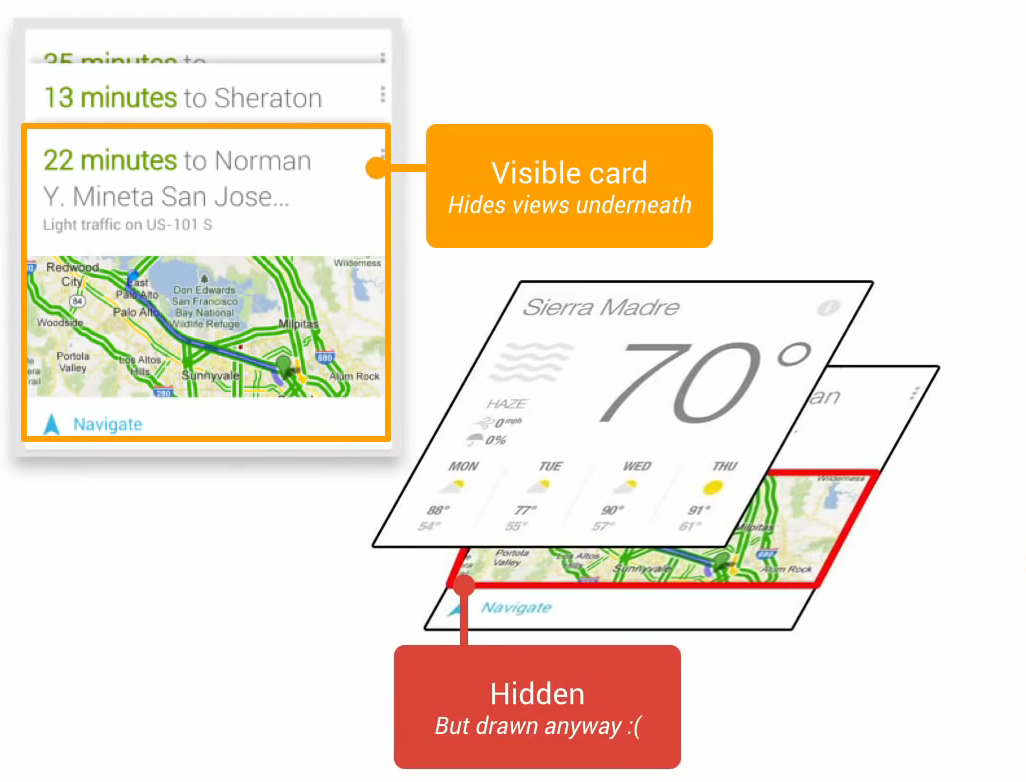

Overdraw Concept

Modern layouts are a double-edged sword: they provide beautiful UIs but can lead to significant overdraw. To maximize performance, you must reduce Overdraw!

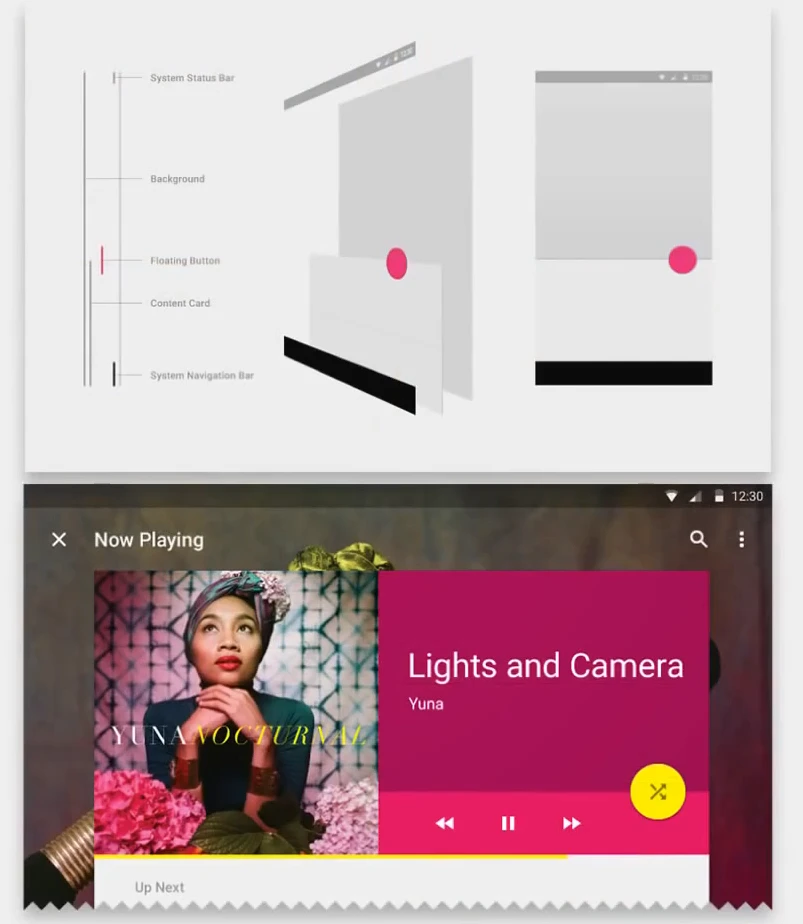

Performance vs Interface

Tracking Overdraw

Android provides on-device tools to visualize overdraw. In Settings -> Developer Options, enable “Show GPU Overdraw”:

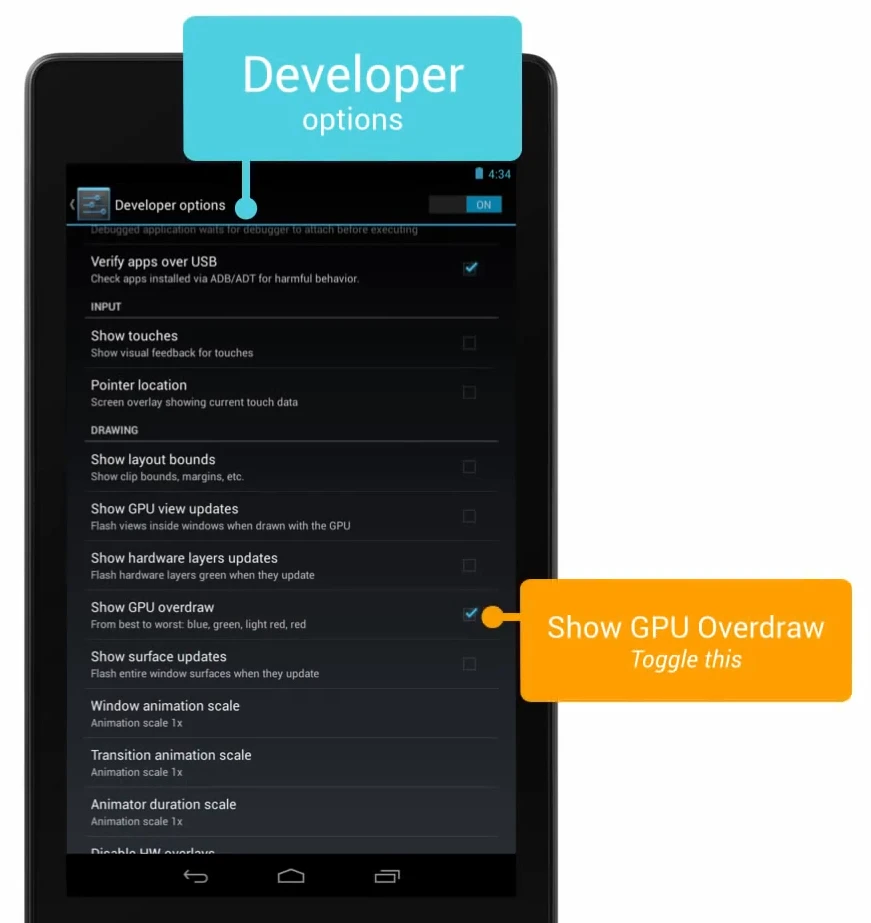

Show GPU Overdraw Tool

Android uses various colors to represent the degree of overdraw. If no overdraw occurs, you see the original color. Other colors represent different levels of excessive drawing:

Blue: 1x overdraw (pixel drawn 2 times)
Green: 2x overdraw (pixel drawn 3 times)
Light Red: 3x overdraw (pixel drawn 4 times)
Dark Red: 4x or more overdraw (pixel drawn 5 or more times)

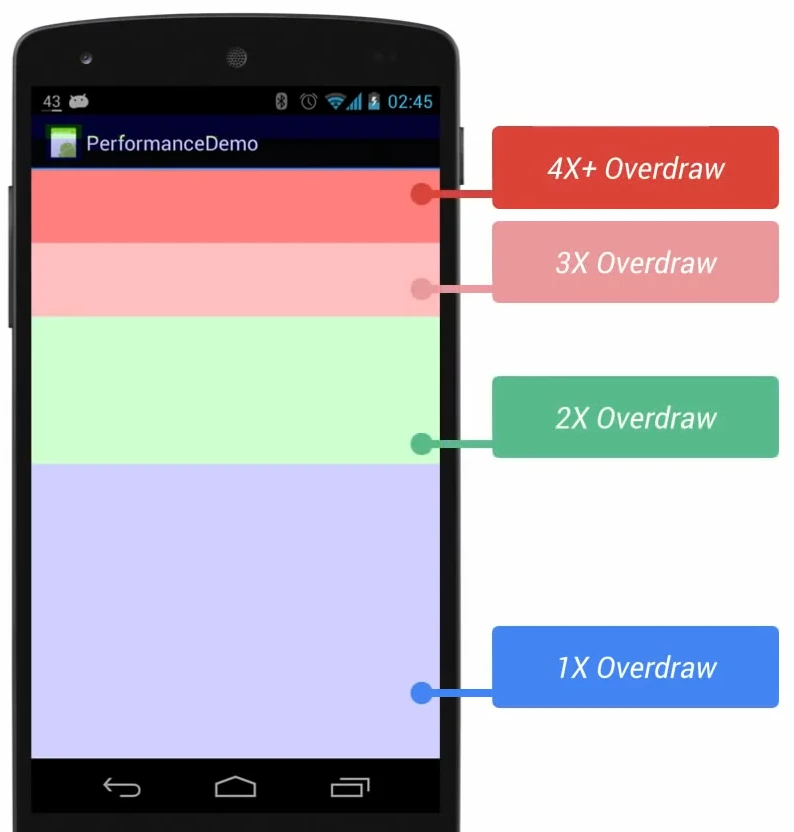

Overdraw Color Codes

Your goal should be to minimize overdraw, aiming for more blue/original colors rather than red:

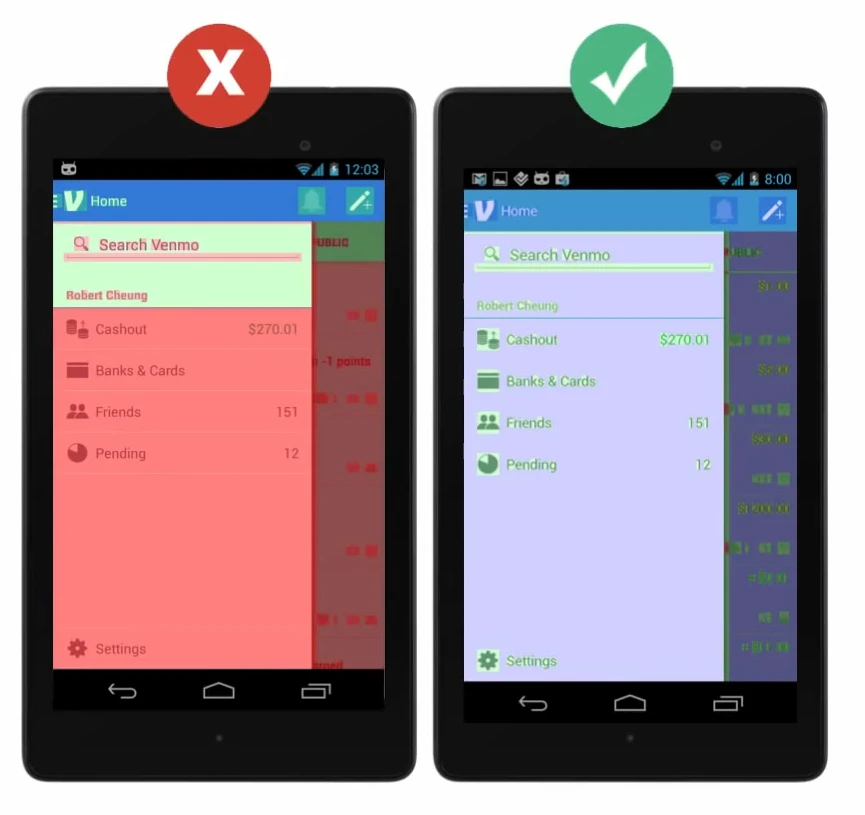

Good vs Bad Overdraw

Root Causes of Overdraw

While overdraw often comes from overlapping views, developers should pay special attention to unnecessary backgrounds.

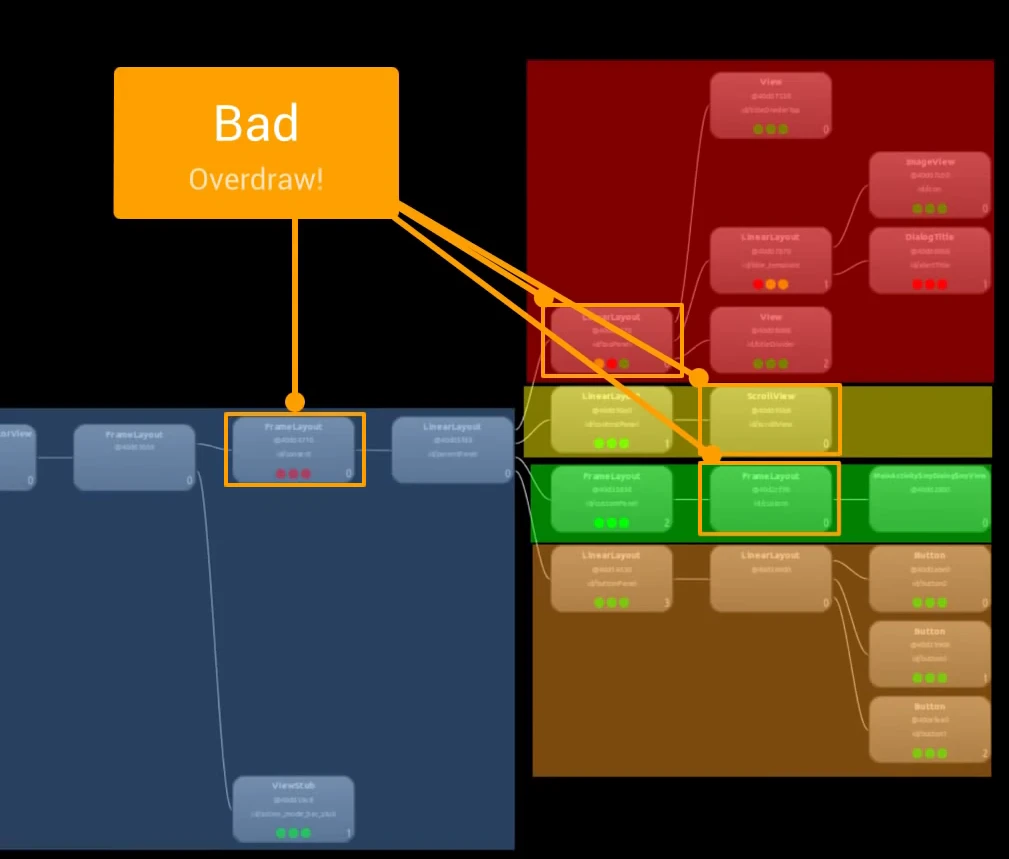

Inefficient Overdraw Example

For instance, if every View in your hierarchy has its own background, you’ll end up like the first image. After removing unnecessary backgrounds (default window backgrounds, layout backgrounds, or invisible images/text backgrounds), the result looks like the second image, with almost zero overdraw.

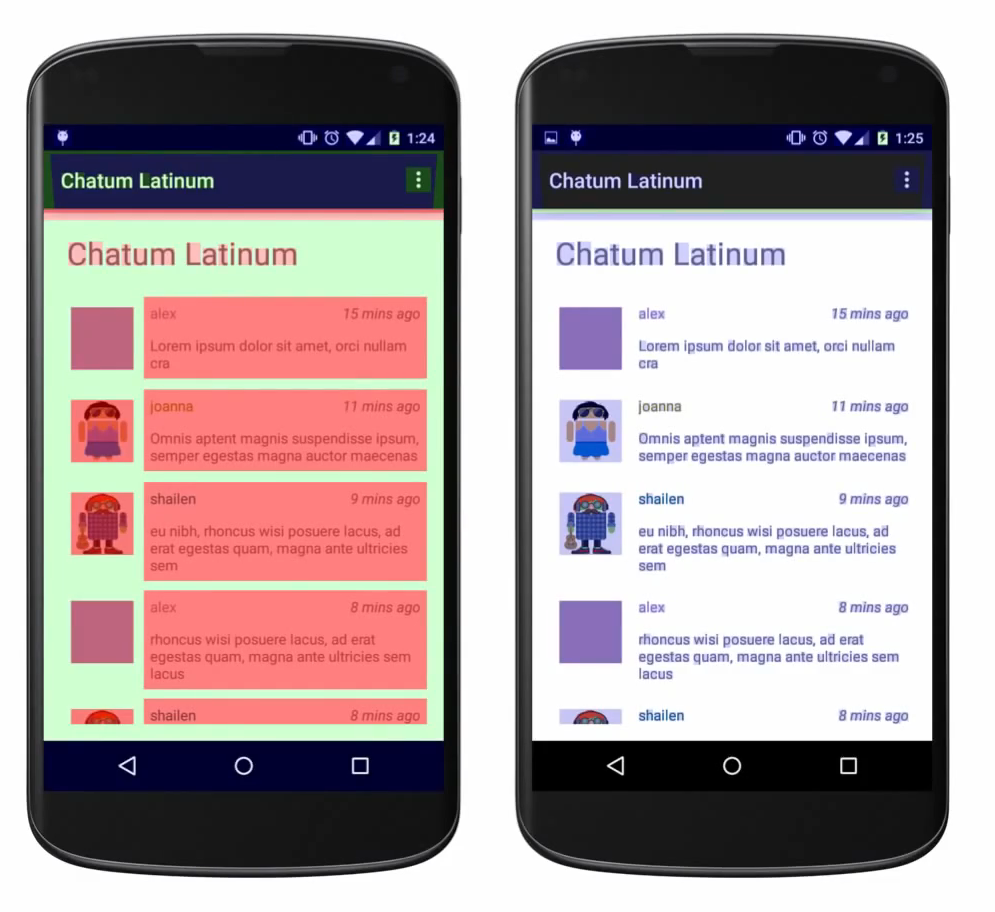

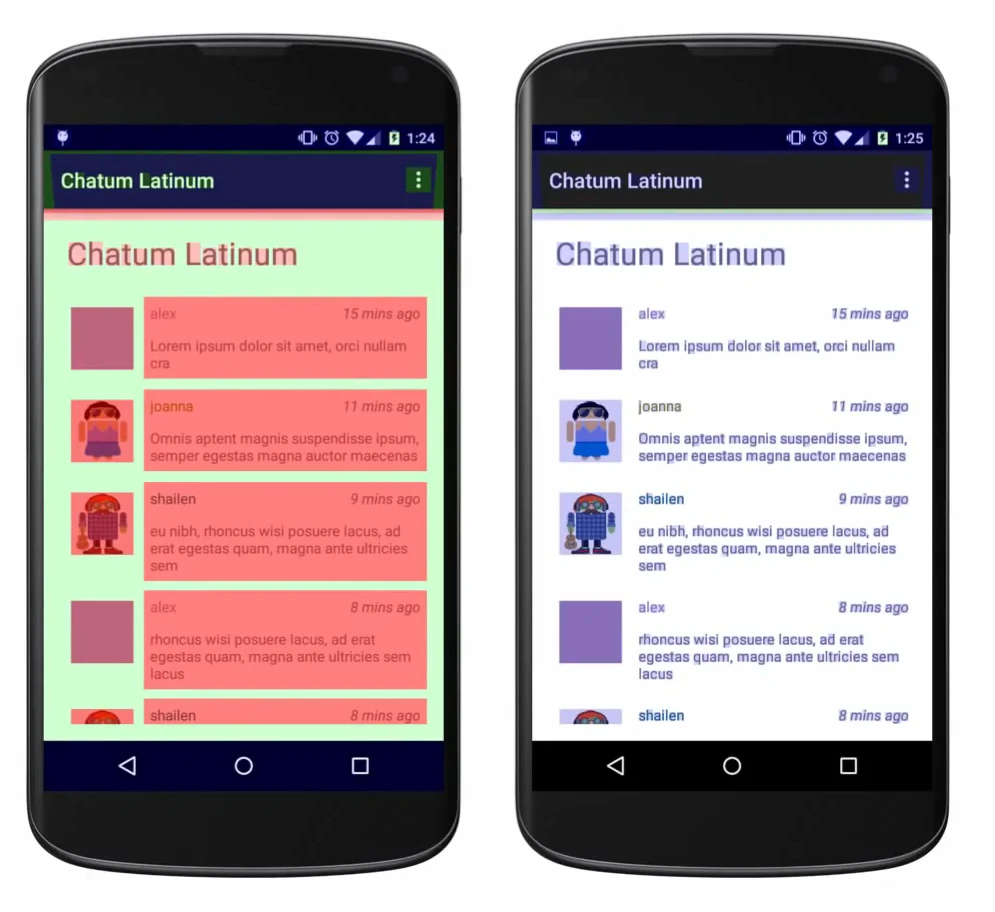

Removing Unnecessary Backgrounds

One simple trick is removing the default theme background of the window:

1	this.getWindow().setBackgroundDrawableResource(android.R.color.transparent);

Perf Matters

Keep calm, profile your code, and always remember, Perf Matters.
